●  Dimensions： 157（H）*73（W）*21.6(T)mm（head 26mm）

●  Weight <500g

●  Display ：4 inch color display with resolution 480*800

●  TP ：Corning Gorilla glass, supports two-touch，Supported gloves and we thands

●  Battery capacity：rechargeable polymer battery (3.8V 4200mAh) removable

●  Standby time >350 hours

●  Working time > 13 hours

●  Charging time ＜3H, using standard power adapter and data cable

●  Expansion Card slot：PSAM x 2, Micro SIM card x 1 , TF card × 1

●  Communication interface：Type-C USB x 1, OTG,POGO Pin x 1

●  Audio： Speaker (mono), Microphone, Earpiece

●  Keypad： Support touch screen soft keypad and physical keypad

●  Sensor： Gravity Sensor,Vibration motor

●  Drop specification：6 sides Supports 1.5 meters drops to the concrete within the operating temperature

●  Rolling test ：500×0.5m rolling for 6 sides

●  Protection level： IP66

一、PDA specification

二、The external structure

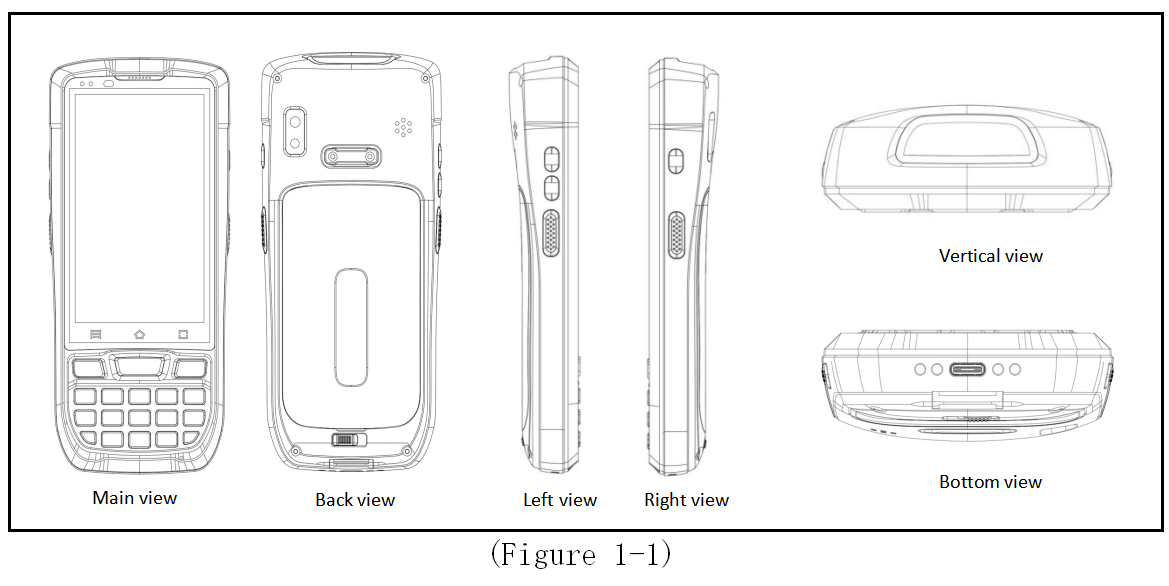

(1) Overall (Figure 1-1)

(1) button function introduction

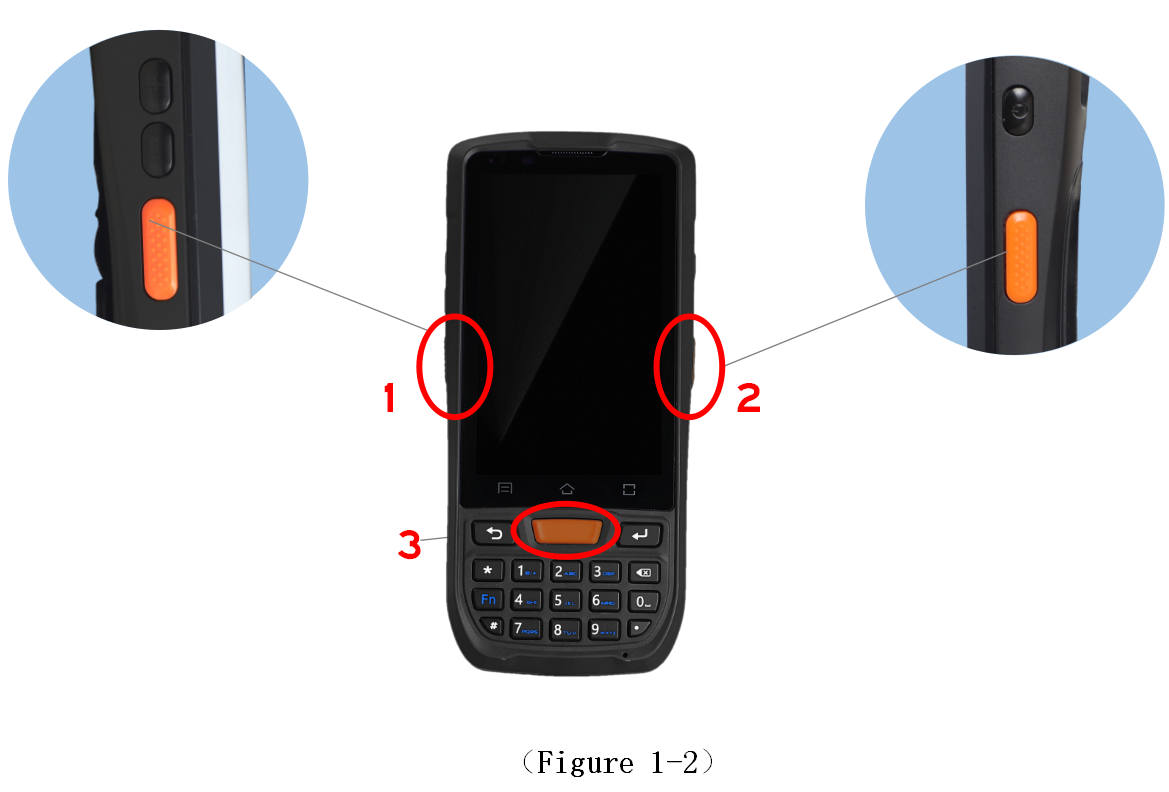

①Scan button: Left 1, right 2 and orange 3 on the main keyboard, as shown in Figure 1-2.

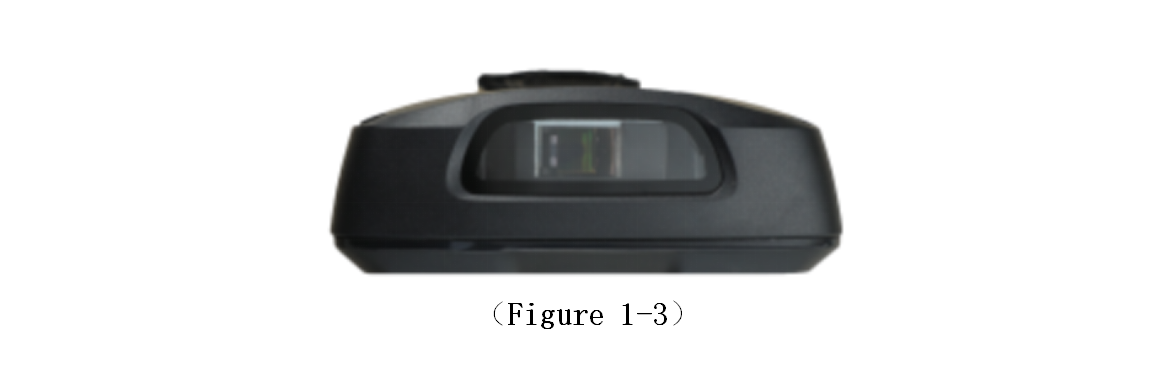

②Top of the machine: bar code scanning head, RFID and infrared and other extension function modules can be installed; Supports semi-customization, as shown in Figure 1-3.

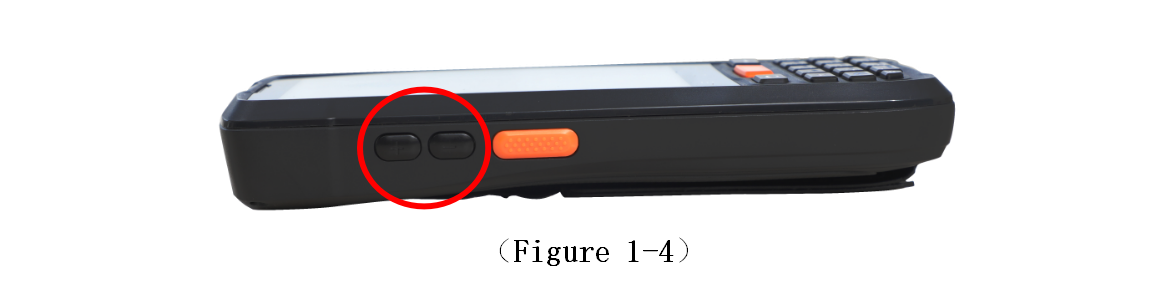

③Volume key: there are two buttons on the left side of the screen, from top to bottom, respectively, volume up and volume down, as shown in Figure 1-4.

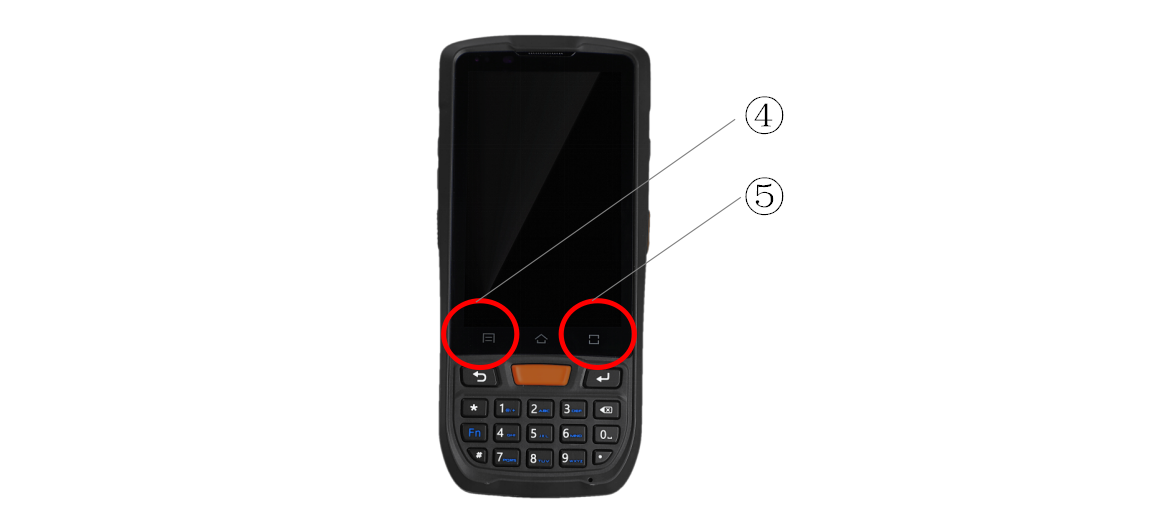

④Menu button: Click the menu button to select the menu according to your needs.

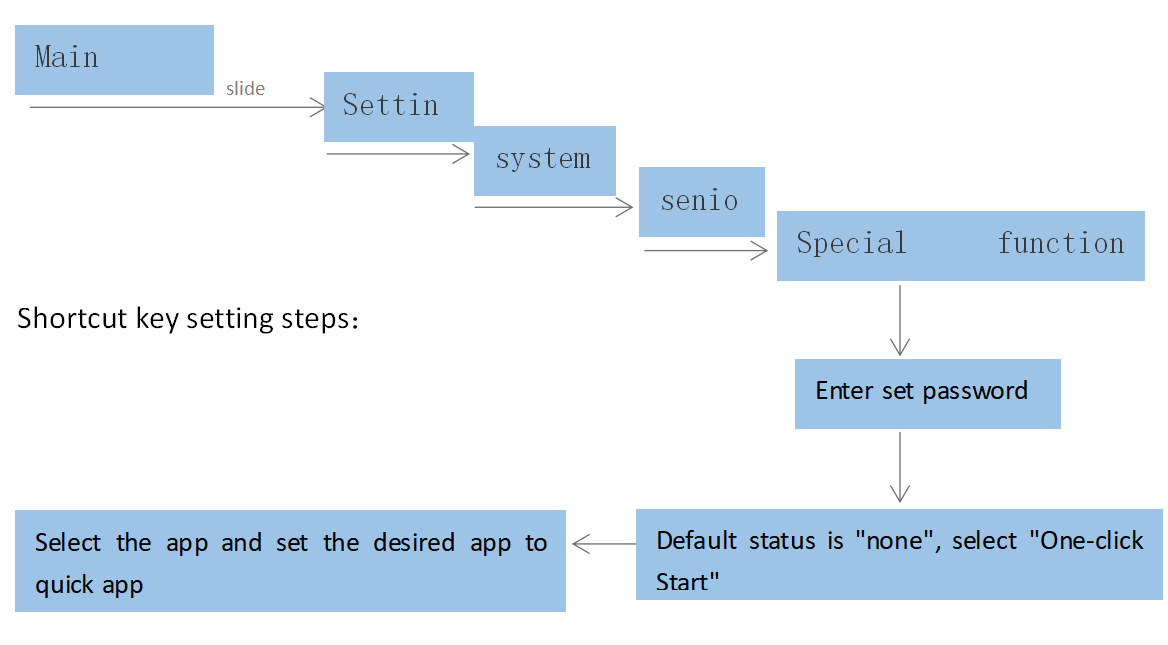

⑤Customizable shortcuts: users can be set according to their own needs for shortcut operations, the initial state without any function.

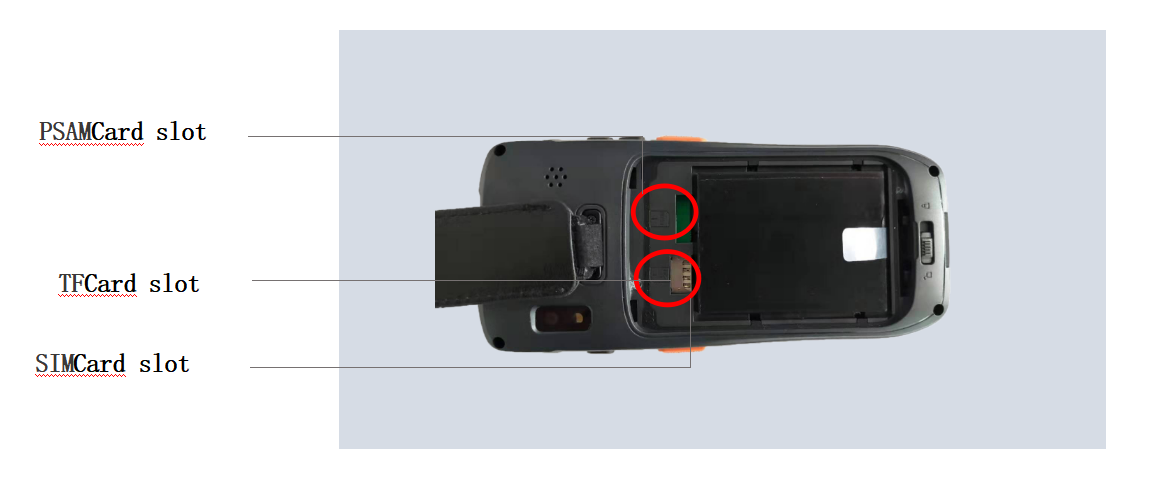

(1) Card slot

Two PSAM card slots: can support two payment modes simultaneously.

TF card slot: stacked with SIM card slot, on top of SIM card.

SIM card slot: all-netcom 4G SIM card slot, under TF card slot.

二、Introduction to Android

（1）The system lock screen

When the screen lock is not set, you can unlock the screen, open the app and view notifications.

(2) Shortcut Settings

Touch the notification bar at the top of the screen and slide down to directly touch each icon setting, or directly touch the system setting icon at the top to enter the system setting.

(2) Prompt and notice are not handled

Double click to expand, touch to view, click and hold to swipe to remove.

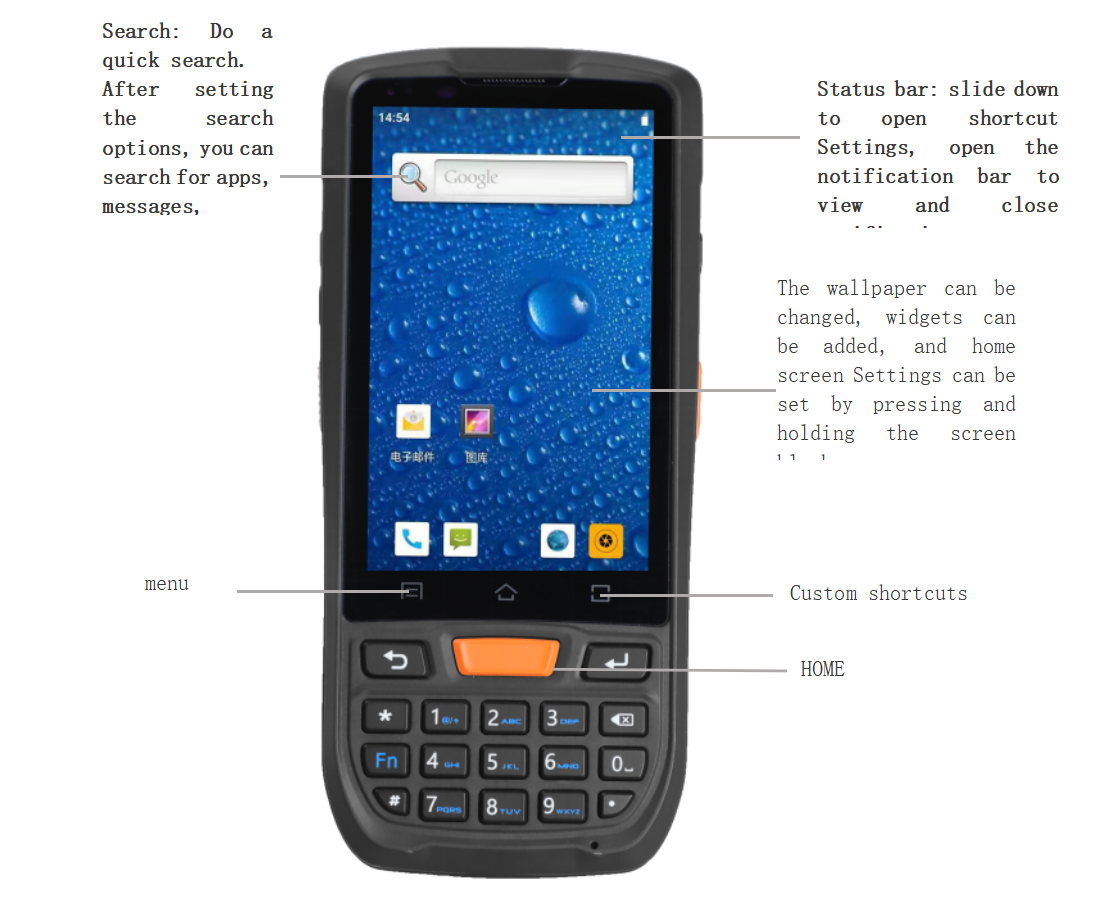

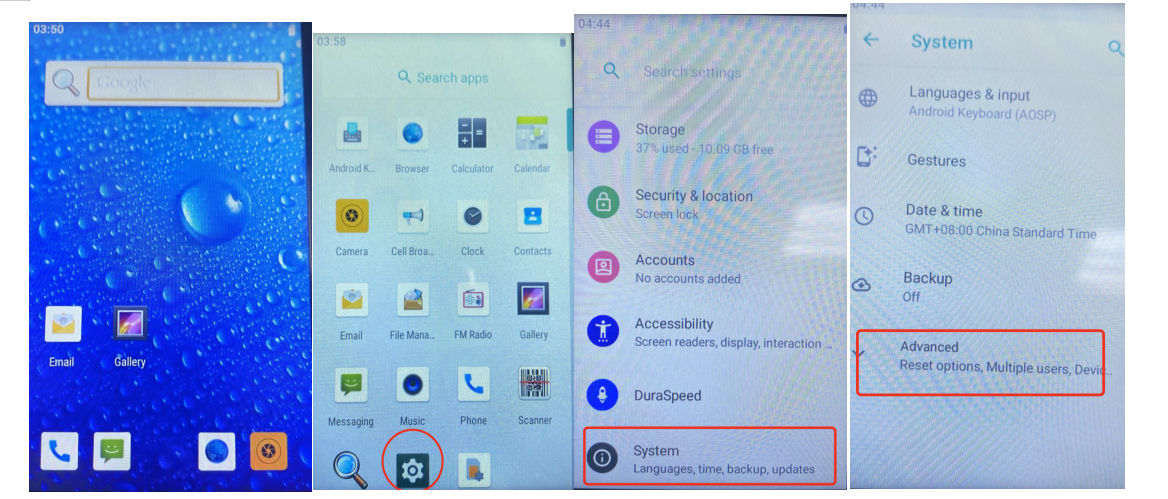

(2) Main interface

On the main interface, you can enter content into the search for web search, observe status, view notifications, open apps, and more.

Shortcut for Mobile Apps: Click on the app icon and drag it to any location on the home screen.

Settings: To change the screen brightness, WLAN, etc., you can directly slide down the status bar to operate in the shortcut Settings.

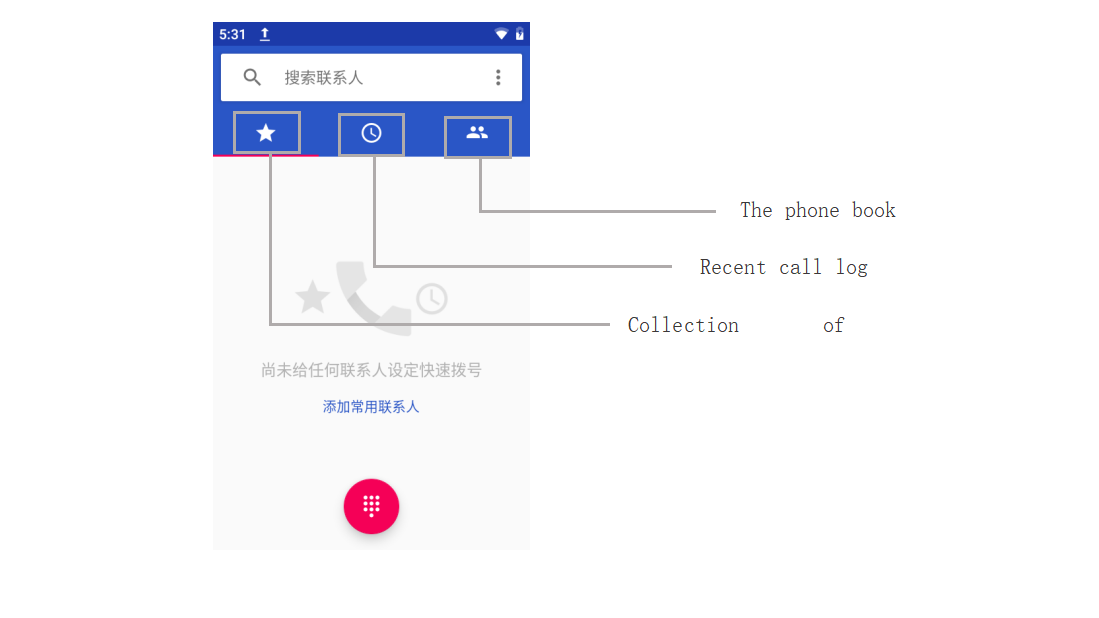

(1) Telephone

Use the phone function by touching the phone icon   on the home page or in all applications.

Speed dial: Displays contacts saved on the phone and favorites.

Outgoing dialing: after opening the dial, enter the number using the virtual dial or using the hard keyboard.

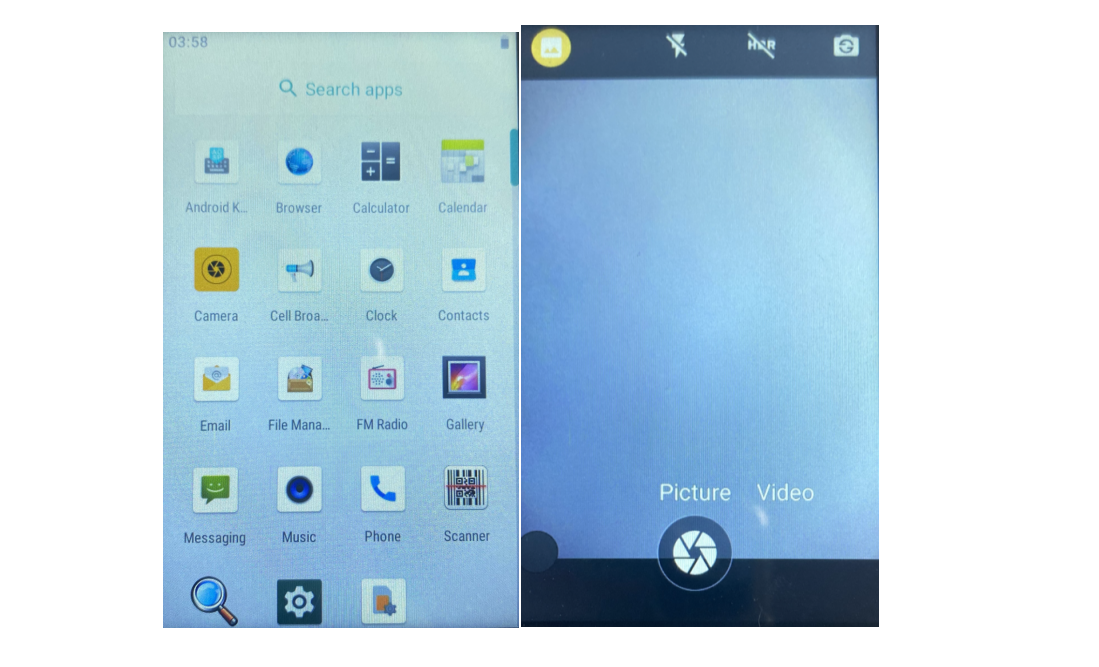

(1) Camera

Open camera by touching the camera app icon.

Photo mode: Swipe left or right to switch to video mode.

Flash mode: Auto, always on and always off.

Continuous recording: It can be recorded several times in a row after being opened.

(1) Setting language

The default display language is Chinese. After the system version is upgraded or factory Settings are restored, the system display language is restored to the default setting.

Can be put into the local use of the phone card changes, or enter the system Settings to modify.

Touch the icon  and select System - Language and Input - Touch the desired language, such as English.

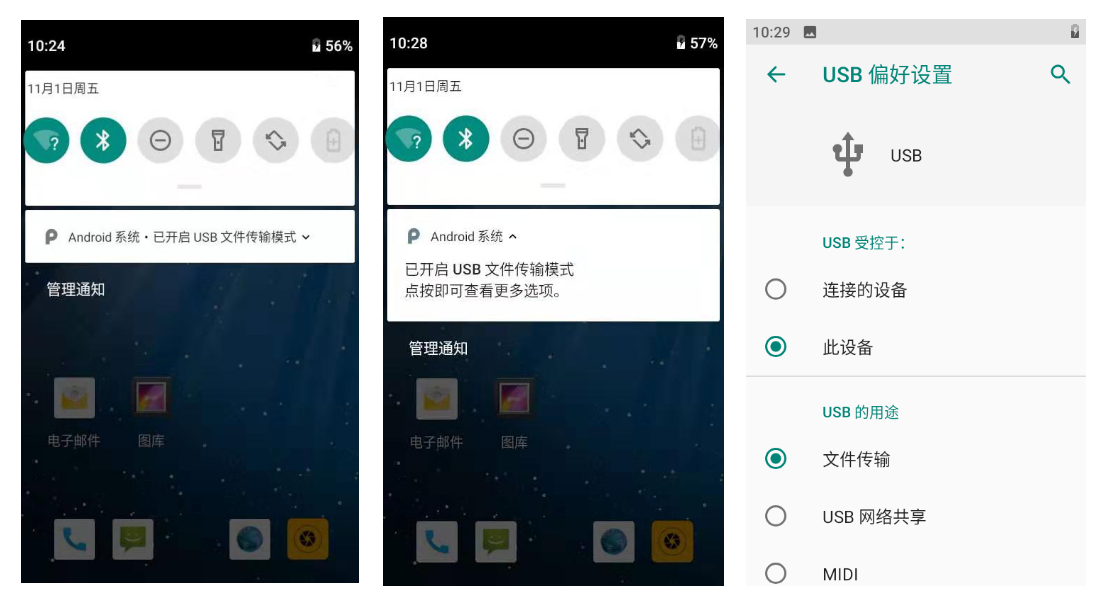

USB Connect to the computer

Use USB cable to quickly connect the machine and computer, and select the operation as required.

One-click scan

Enable one-click scan and usage

One-key scan is also called quick scan, focus scan. Using this feature, you can scan the barcode or QR code directly.

Scanning results display: after successful scanning, report and display barcode information at the current cursor position.

Scan prompt sound: "ding" prompt sound can be heard after the scan is successful.

How to use: Click on the "Google" search interface on the main interface, and long press the orange scan key to display the scanning results in the search bar interface.

RFID read

RFID read support low frequency, high frequency, uHF and other full series of rf.

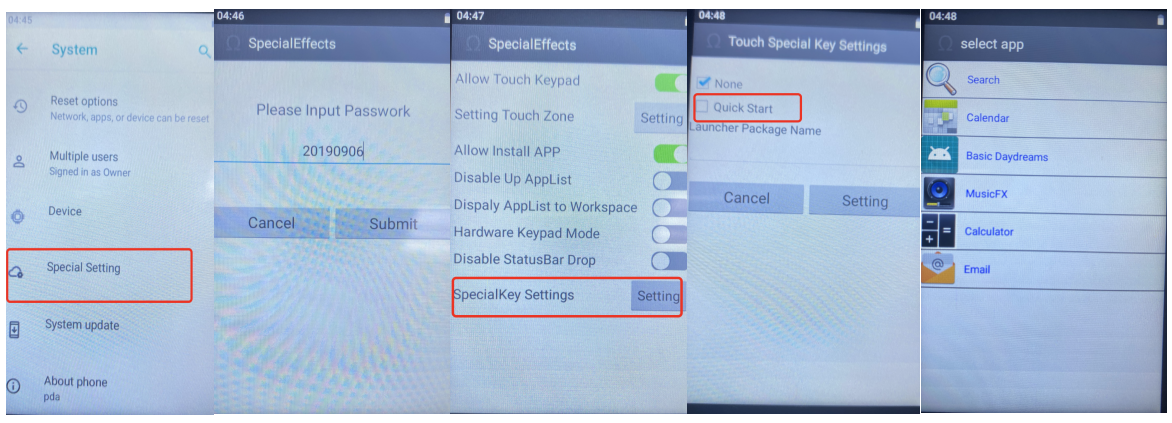

Special function customization description

Flexible add-on module to support the customization and modification of operating system to meet the application requirements of customers. Please contact us  for specific requirements.

After-sales service

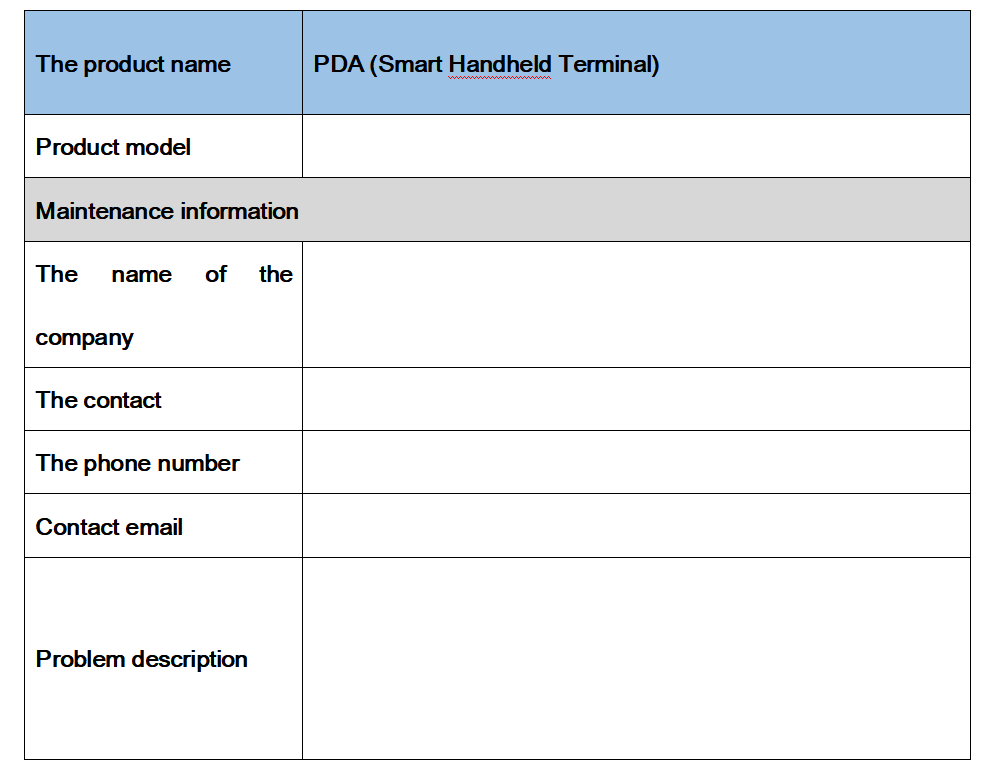

After-sales warranty card
