Ultra-High performance

Orient-Future applications

OS: Android 9.0

CPU: Oct-core, 2.2GHz

Memory: 2G RAM+16G ROM, 4G+64G is optional

Communication: 2G/3G/4G, Wi-Fi, Bluetooth

Display: 5.5 inch IPS display, Corning Gorilla Glass

Barcode scanner: Support 1D&2D  Optional  Zebra/Honeywell

NFC: Support 13.56MHz RFID tag recognition, ISO14443/ISO15693 standard

Camera: Camera: 13M AF Rear-facing camera, 5M Front camera

Battery: 3.8V, 4000mAh

Brand-new Large Screen, Top Configuration ,Enterprise-level Mobile Data Acquisition

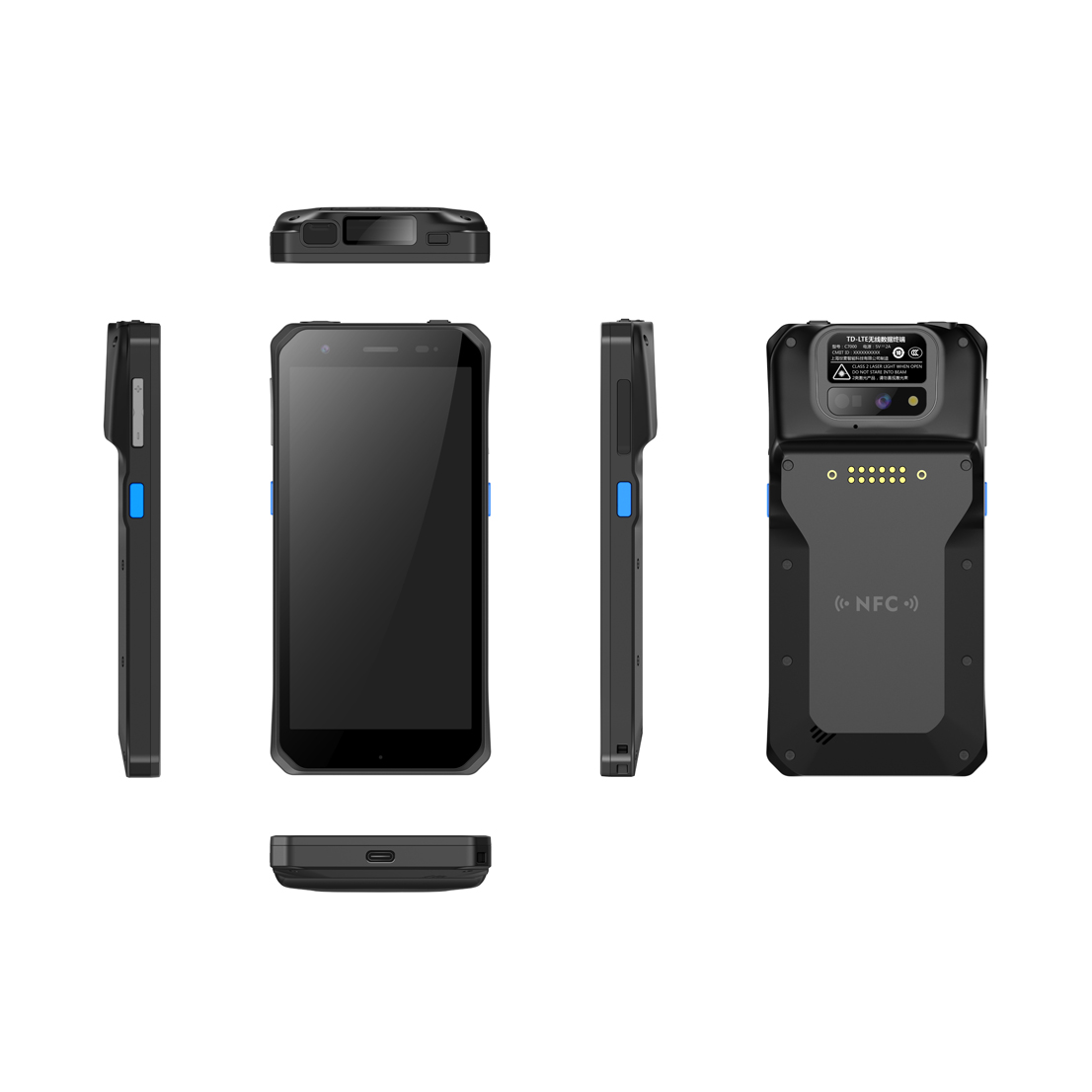

C7000 is an enterprise-level mobile Computer with brand-new large screen and top configuration. It based on Android OS8.1, adopting Octa-core High Speed Processor, owning Leading Extra-large 5.5-inch screen and ultra wide Angle IPS 1280P display ,equipped with first-class configuration of brand scanning engines. The whole device is light, portable and can be operated by one hand. Born with strong, durable and ultra-rugged with Protection level up to IP65. Collecting data more accurately and efficiently. It provides All-China Netcom (TD-LTE /FDD-LTE) and supports GPS/THE PLOUGH/Glanoss Navigation. Equipped with unique 3D Camera &Depth Sensing Detection Module, used for volume measurement and bar code recognition in the process of express collection, it will improve manual measurement work efficiency finally.

It is widely used in Warehousing Logistics, Express Receiving, Smart Retail, Mobile medicine, Asset Inventory, Mobile Enforcement, Food traceability and other fields. With self-developed MDM mobile management, can meet various operation and management needs of different industries.

l Leading large 5.5-inch screen，18:9 Full View Display

· 5.5-inch large screen，Industry pioneer18:9 Full View Display，help the users to check the information and input the data accurately and rapidly.

· Clear and delicate visual effects，to meet various needs of different industries.

· High Definition，capacitive, multi touch, ultra wide Angle IPS display, Corning Gorilla Glass;

l Stronger performance，More Efficient Data Collection

· Based on Android OS 9.0, adopts Octa-core High Speed Processor;

· Excellent barcode scanning engine, equipped with first-class configuration of brand scanning engines such like Zebra/Honeywell；

· Collecting data :read one-dimensional and two-dimensional symbologies accurately and efficiently,

can perfectly identify stained, curved and other low-quality symbologies.

l Industrial Grade Materials, Rugged and Durable

· Can withstand harsh environmental, passed 1.5-meters’falling test, strong anti-crash ability;

· IP65: Unique machine and kernel seal design, IP65;

· Anti-wear: best anti-wear keys, Corning Gorilla Glass screen；

· High quality standard design: Key connectors passed 3000 times’ plug testing；

· Long endurance: Adopts 4000mAh lithium battery, supports working whole day;150mAh Built-in standby battery(Main battery can be replaced without turning off the machine).

l Richer Functions, More Humanized Design

· 3D Camera &Depth Sensing Detection Module：Length, Width, Height and Volume of the measured object can be calculated automatically from the depth information obtained by 3D camera. Laser reflection ranging uses time-of-flight ranging combined with point cloud matching algorithm to obtain accurate data. And binds with bar code to collect data more quickly and efficiently.

· NFC recognition: high-performance NXP NFC chip is used ,Support ISO14443/ISO15693 standard 13.56MHz NFC tag recognition, Can identify the second generation ID card；

· Supports GPS/ the Plough /Glanoss Navigation：Global application allowed, more accurate location information services ;

· Ergonomic design ,making the grip feel comfortable. The device weighs only 235g ,13.5mm thick.，Light and handy, free and relaxed used;

l Efficient, fast and stable Wireless Communication

· Support All-China Netcom in mainland China. 4G-all Network(TD-LTE /FDD-LTE). Real-time data communication is guaranteed.

· 2.4GHz/5GHz dual band WIFI; Specially designed for large storage and other complex environments, excellent anti-jamming performance; Industrial WIFI module，provide you with more stable and efficient wireless support.

· Bluetooth V4.1 + BLE， Perfectly matching the mainstream portable printers.

l Unrivalled Manageability

Each mobile computer is equipped with MDM management System. Which was self-developed to make security protection in mobile devices, App&Documents, location management; Safeguarding the operation and maintenance of enterprise's terminal assets.

l Wide Application Scenarios

Warehousing Logistics, Express Receiving, Smart Retail, Mobile medicine, Asset Inventory, Mobile Enforcement, Food traceability

l TECHNICAL SPECIFICATIONS

Note: Above parameters for reference only. Specific configuration may vary due to different models.

l Authentication
